Village of Reedsville
Waste Water Treatment Facility
Design Criteria
Design Population 1322
Average Daily Flow - Dry .168 mgd
Average Daily Flow - Wet .324 mgd
Maximum Daily Flow .690 mgd
Maximum Design B.O.D. 599 lbs/day
Average Daily SS 366 lbs/day
Design Phosphorus 16.2 lbs/day
System Description
35,000 ft. of 8" collection main
2,110 ft of 10" collection main
2,020 ft of 12" collection main
7,250 ft of force main
Pump Stations
2 - Lift Pump Stations
Main Station
2 - 17 hp sanitary pumps 282 gpm 137 TDH
2 - 42 hp storm water pumps 563 gpm 137 TDH
Subdivision Secondary:
2 - 4 hp sanitary pumps 200 gpm 30 TDH
General Information
Waste Water Treatement Plant
Headworks Building
Grit removal system, fine screen, influent sampling, influent metering.
Oxidation Ditch
Capability to treat 690,000 gallons per day.
Oxidation Ditch total volume = 160,571 gal.
1 - Clarifier total volume = 72,152 gal.
2 - Return Activated Sludge Pumps
1 - Waste Activated Sludge Pump
1 - Sludge/Scum Transfer Pump
1 - 9 bank/4 light ultraviolet disinfection structure, effluent sampling structure and post aeration
1 - Sludge thickener
1 - Sludge aqua store
1 - Storm water holding basin = 728,590 gal
Water Utility
Municipal Wells
The Village has 2 - Deep Municipal Wells
Well #3 - 336ft deep - drilled in 1974
Produces 400 gallons/minute
Approximate run time = 3hrs/day
Disinfection Chemical - sodium hypochlorite
Corrosion Control Chemical - sodium silicate

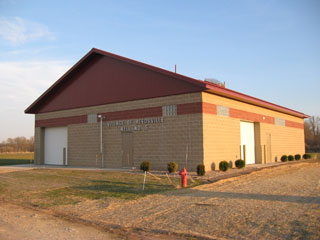

Well #5 - 410ft deep drilled in 1998
Produces 350 gallons/minute
Approximate run time = 3hrs/day
Disinfection Chemical - sodium hypochlorite
Corrosion Control Chemical - sodium silicate
Contains an ion exchange system to remove Nitrates
Elevated Storage
Elevated Storage - Towers
1 - 100,000 gal sphere tower constructed in 1974
1 - 50,000 gal ground storage reservoir constructed in 2011
Miscellaneous Information
Elevated Storage - Towers
1 - 100,000 gal sphere tower constructed in 1974
1 - 50,000 gal ground storage reservoir constructed in 2011
